(Pre-order) HMS Surprise
(Pre-order) HMS Surprise
Couldn't load pickup availability
Share

PRE-ORDER INFORMATION
- HMS Surprise is currently available for pre-order.
- Estimated dispatch is approximately 4–6 weeks from the date of order. Orders will be dispatched in the order they are received.
- Please read our Shipping & Pre-Order Policy before purchasing.
Watch a full YouTube review of the kit here: Watch Now.

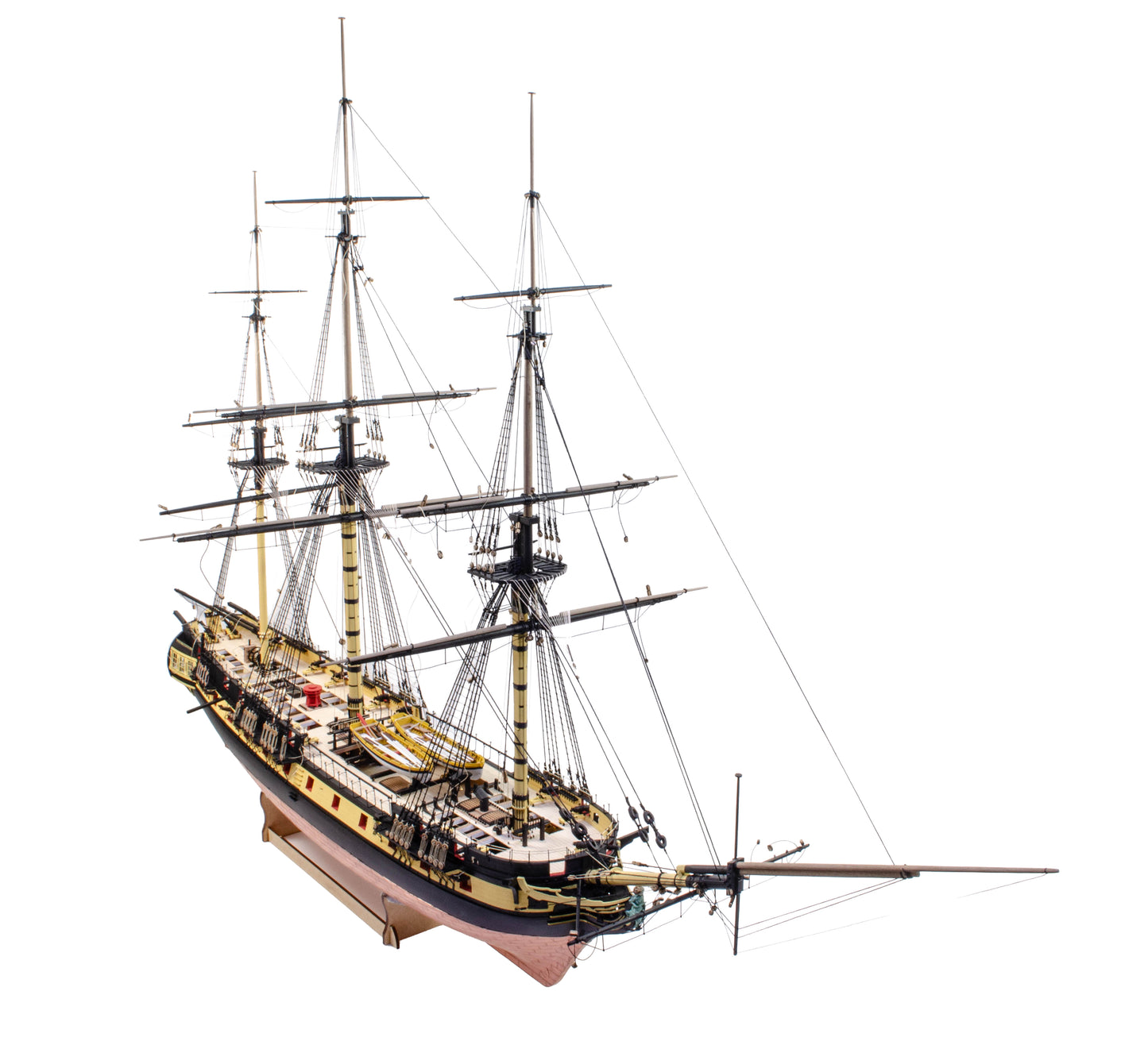

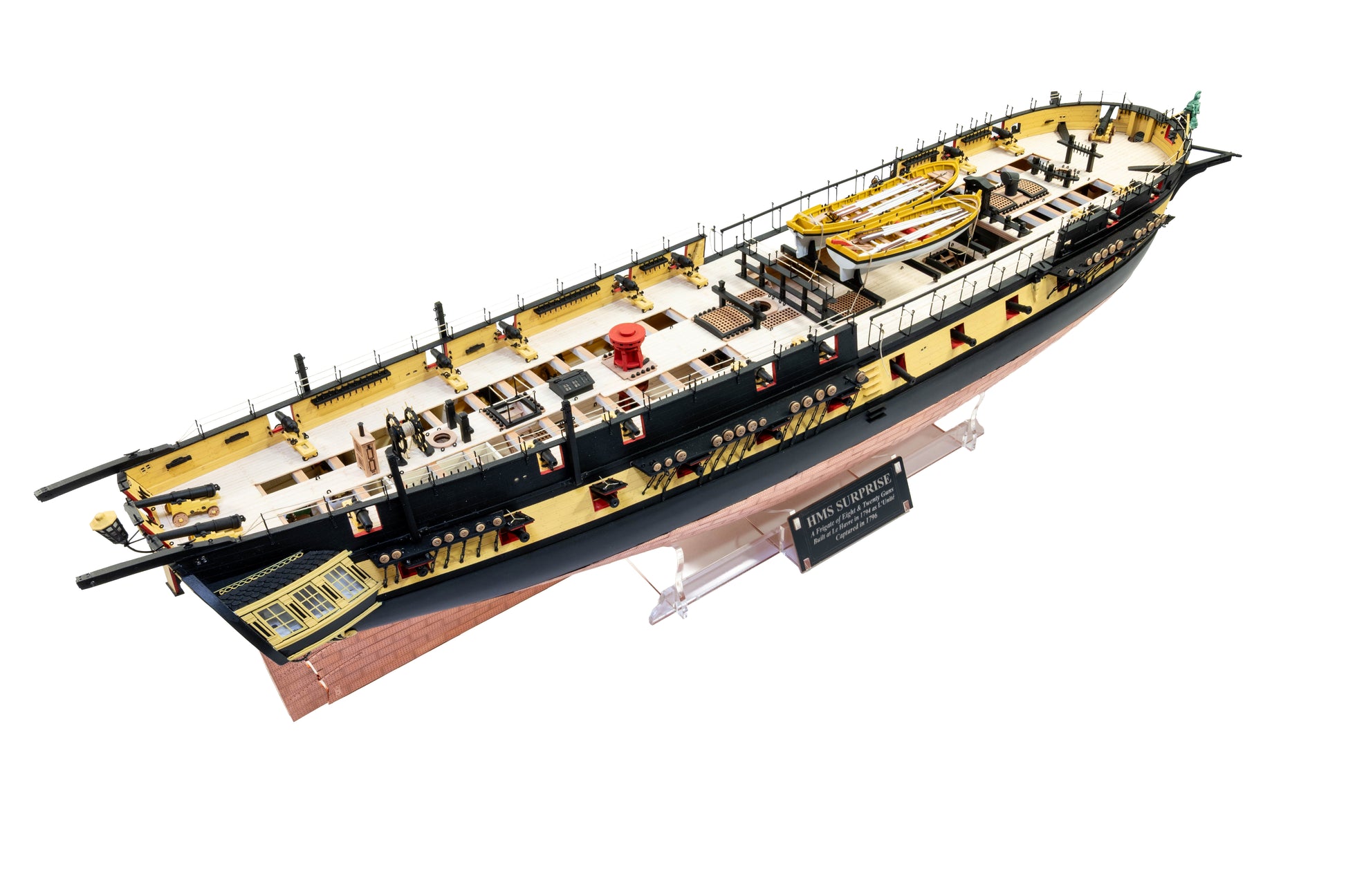

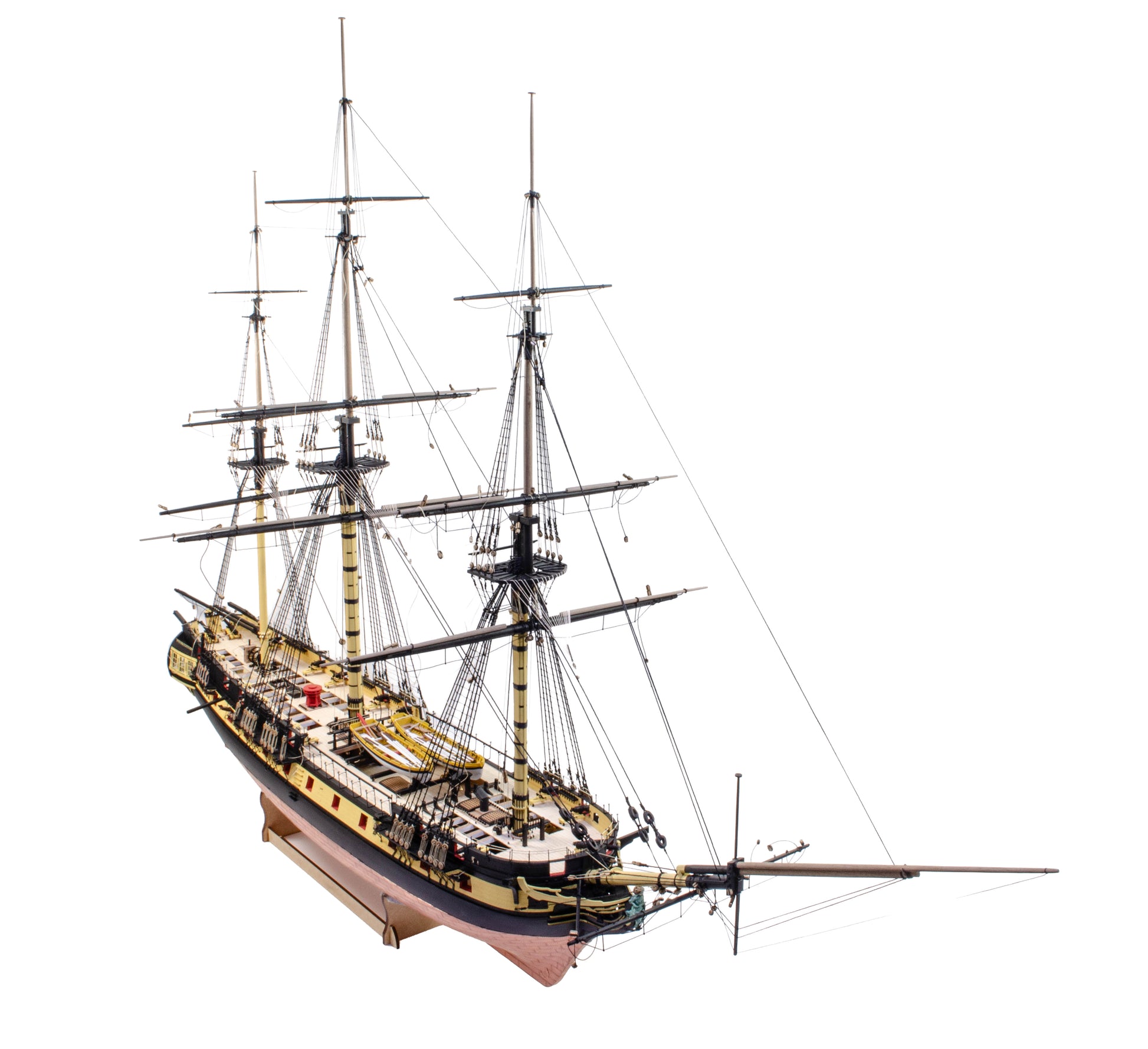

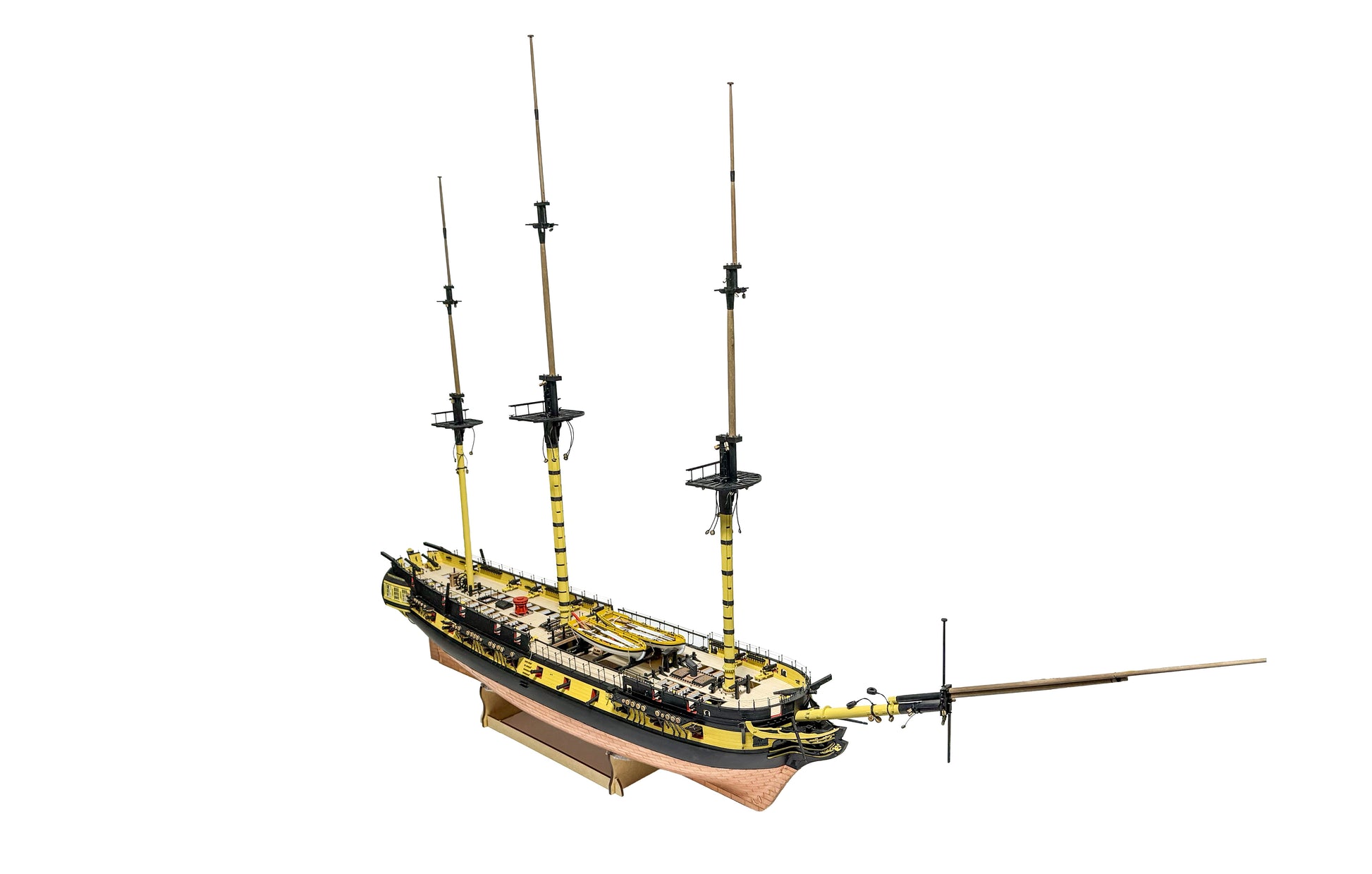

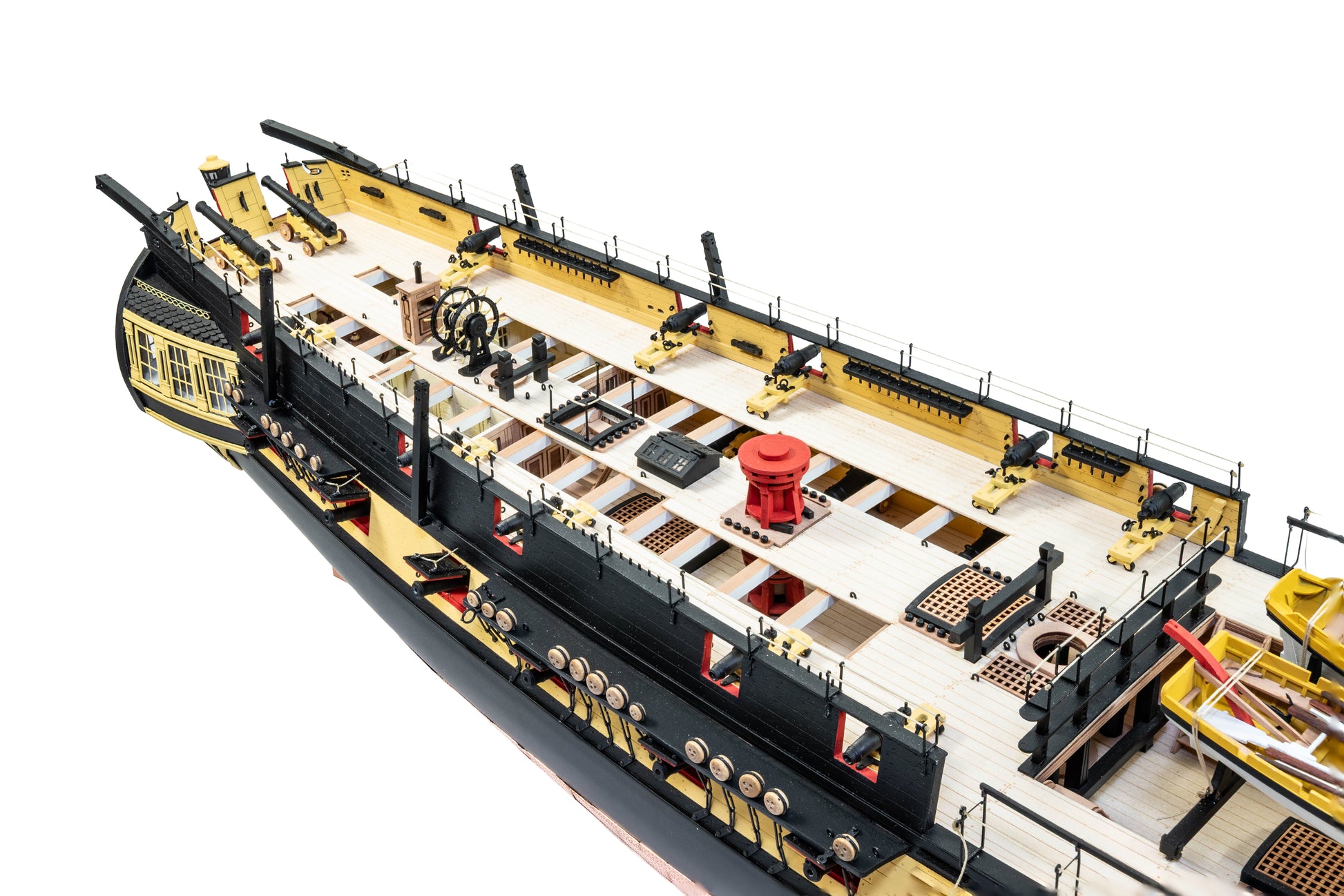

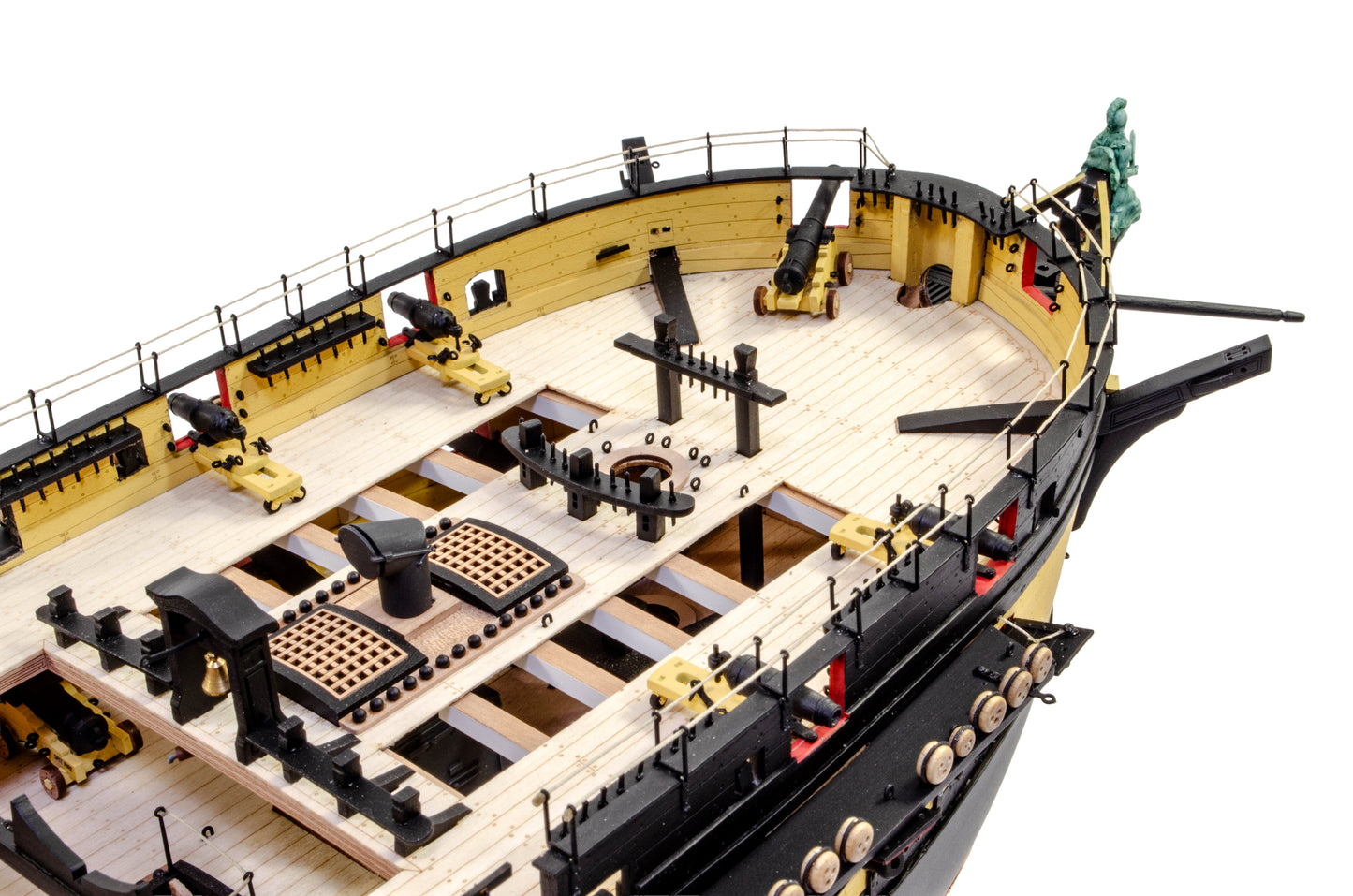

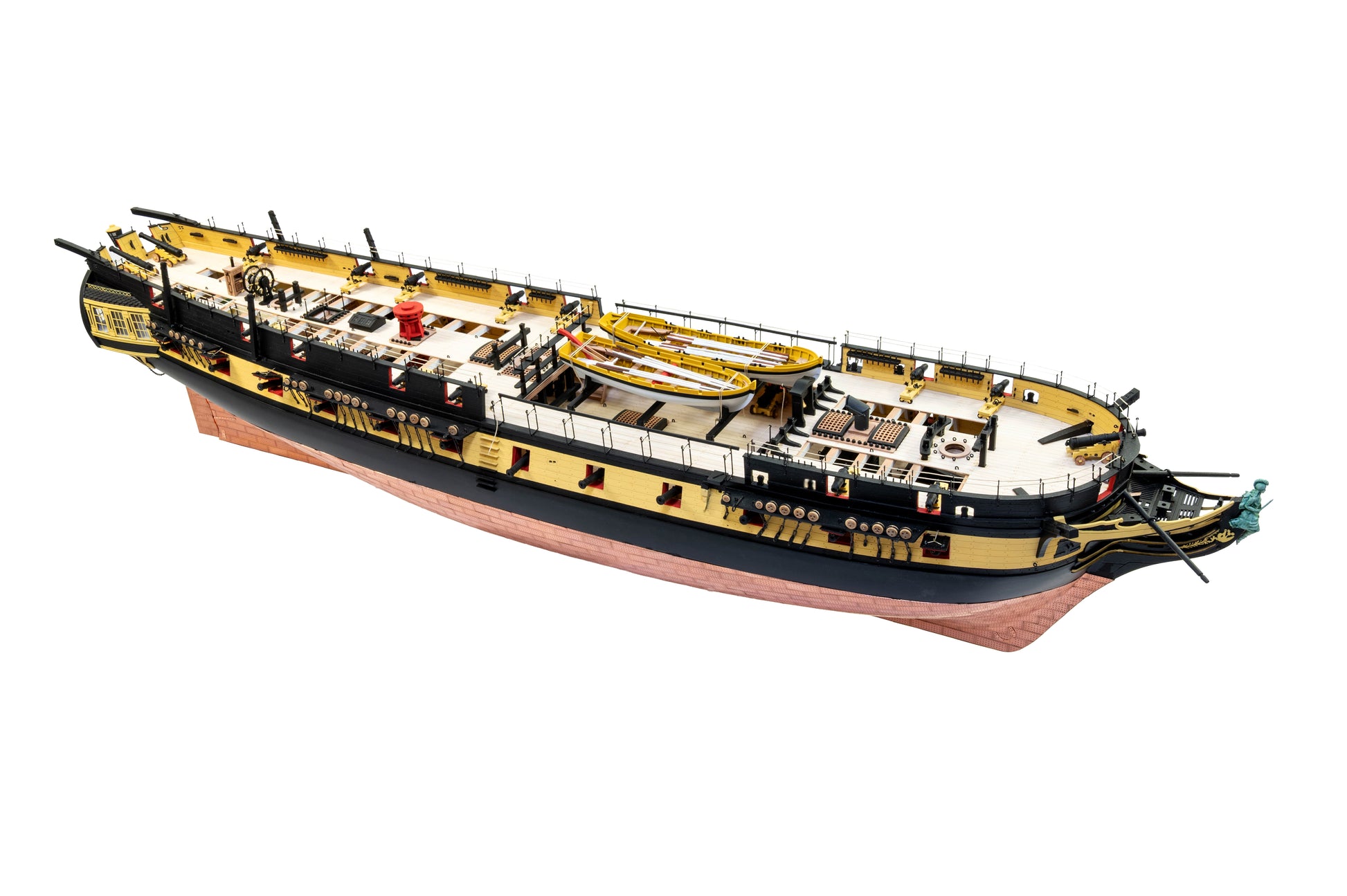

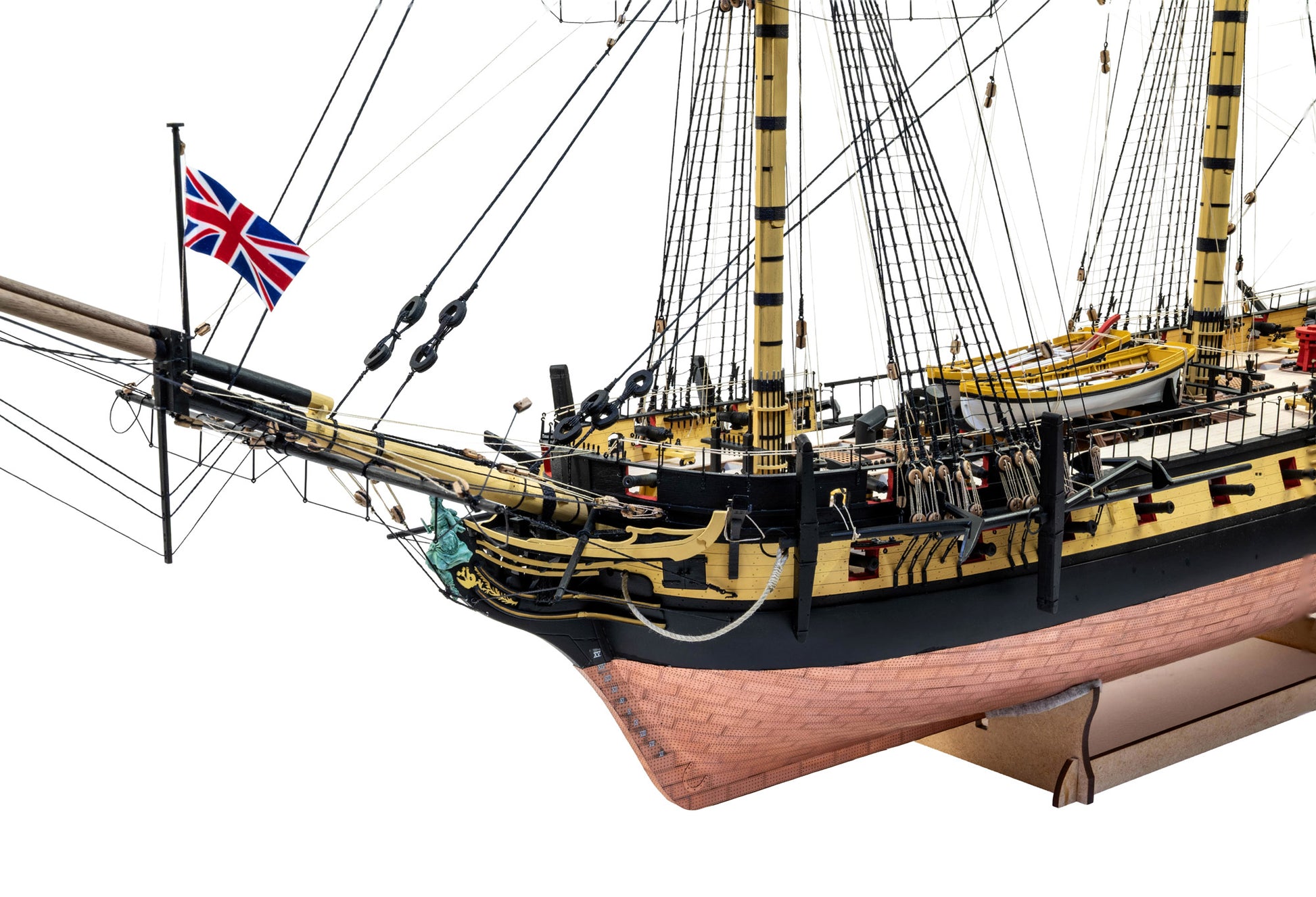

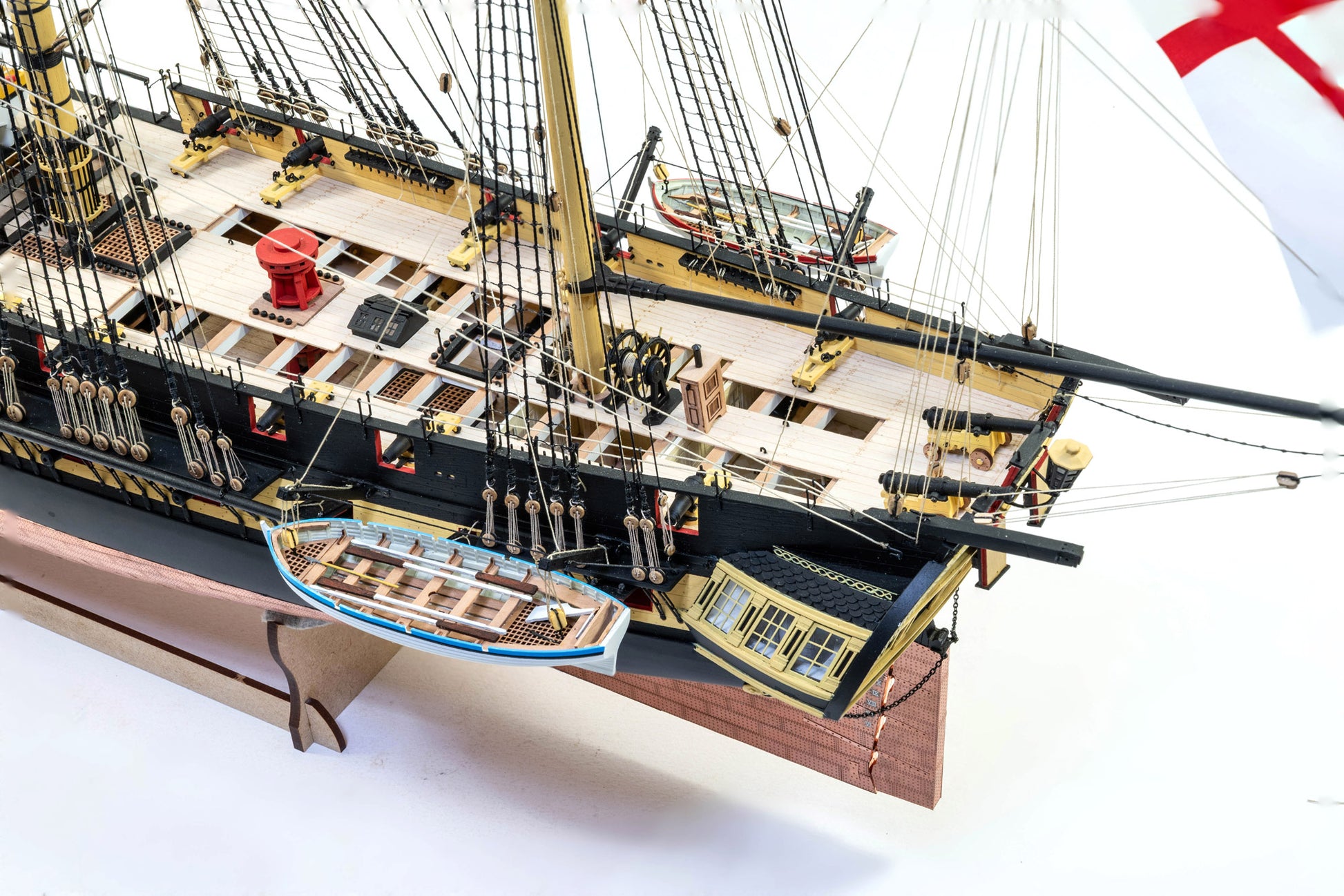

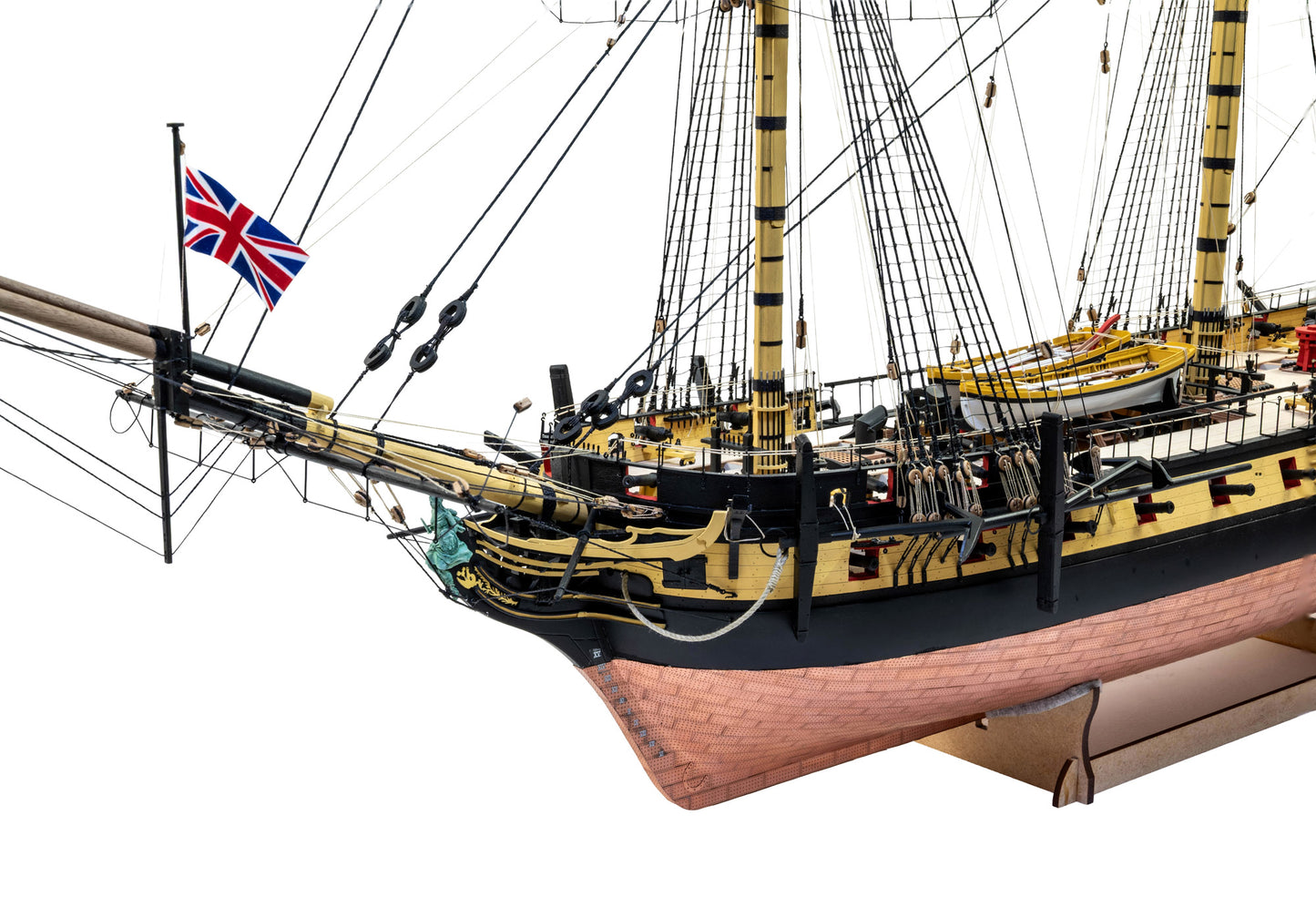

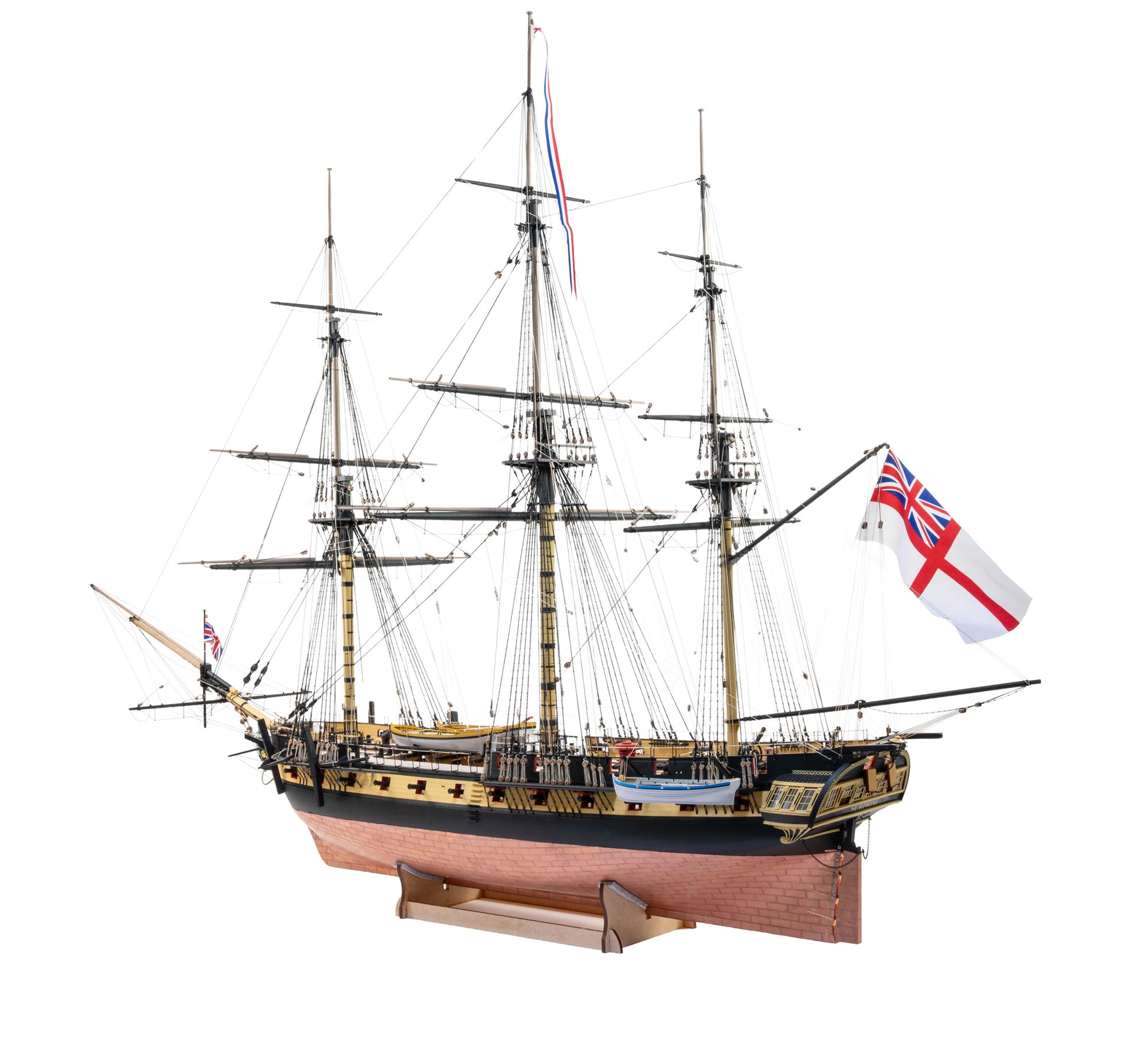

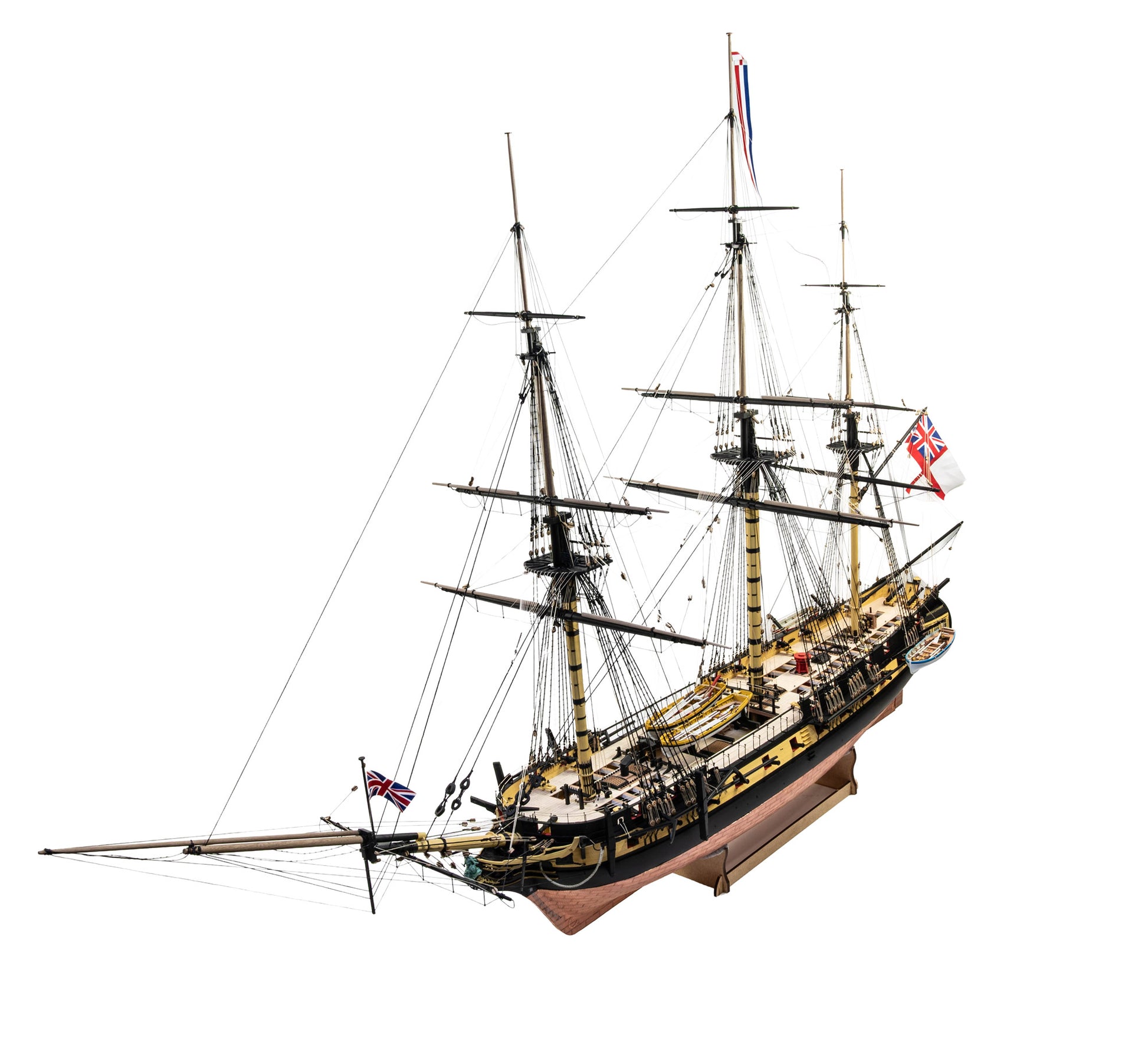

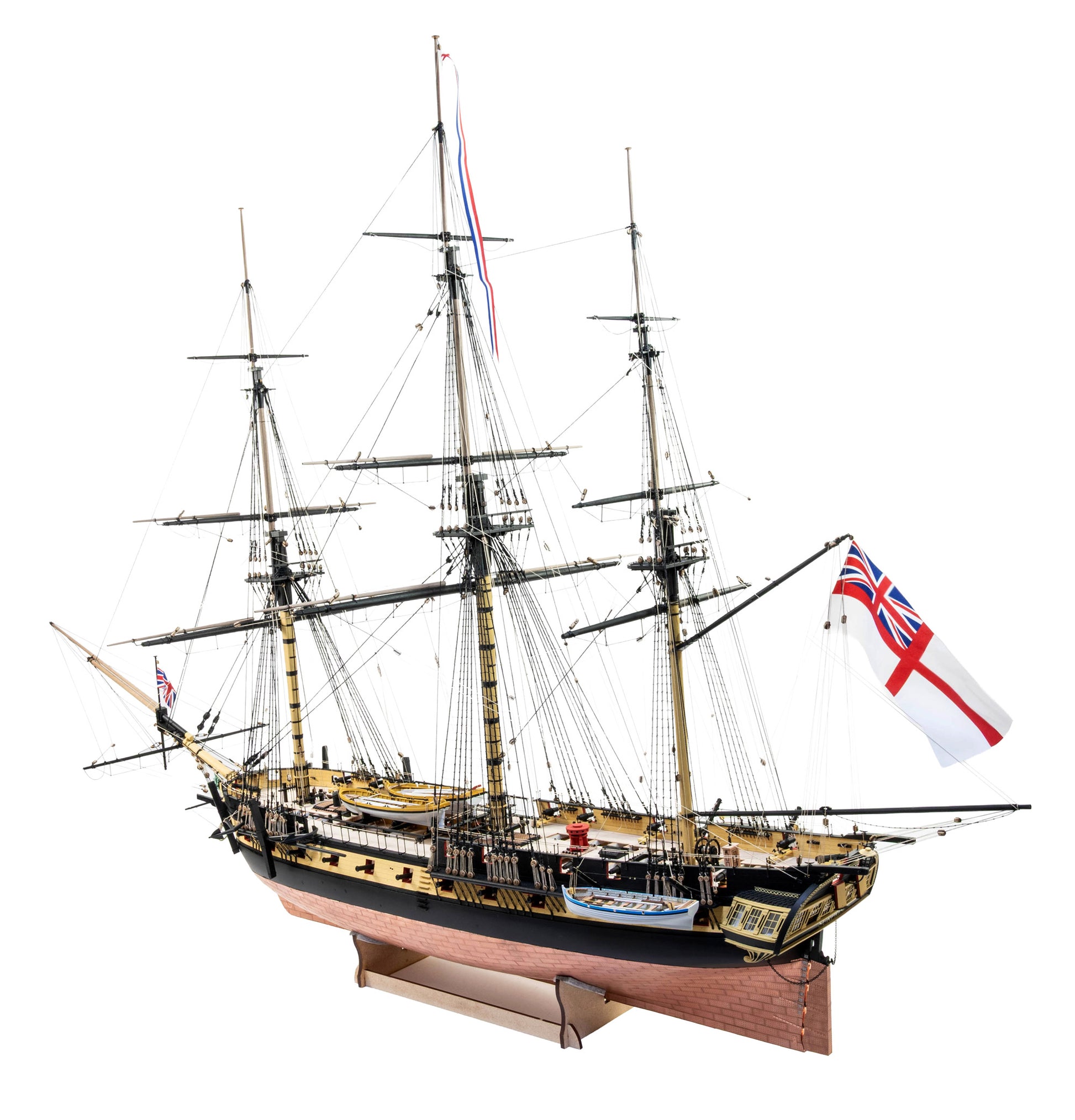

HMS Surprise – 28 Gun Frigate 1794
An exact scale model of the famous 28-gun captured French frigate made legendary through the Patrick O’Brian Aubrey–Maturin novels.
Developed first and foremost to represent the fictional HMS Surprise from the novels, this highly detailed kit has been designed for serious ship modellers seeking accuracy, scale fidelity and an immersive build experience.
Kit Features
- Laser cut materials in Pear wood, Lime, MDF and acetate
- Double planked hull in lime wood and Pear wood

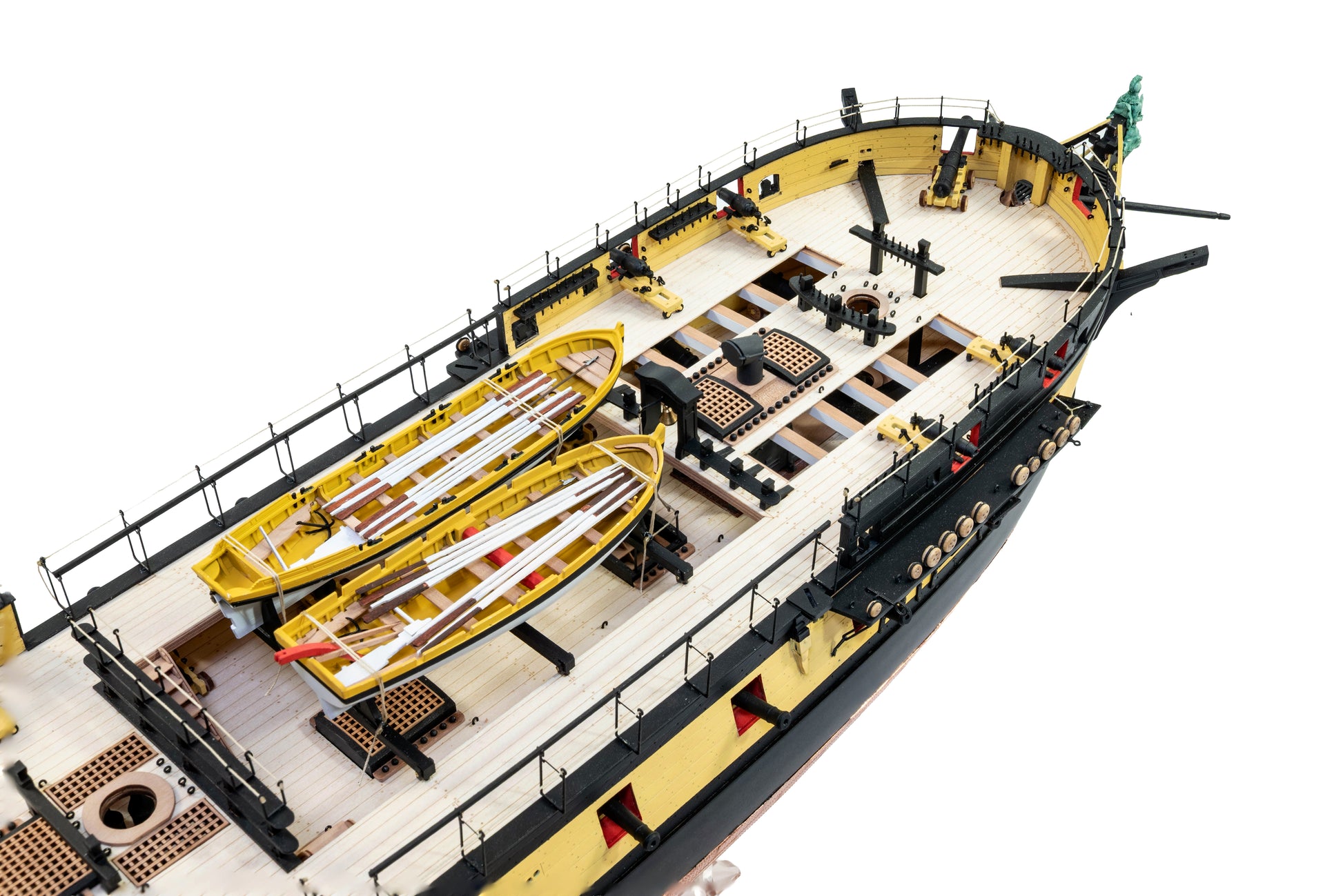

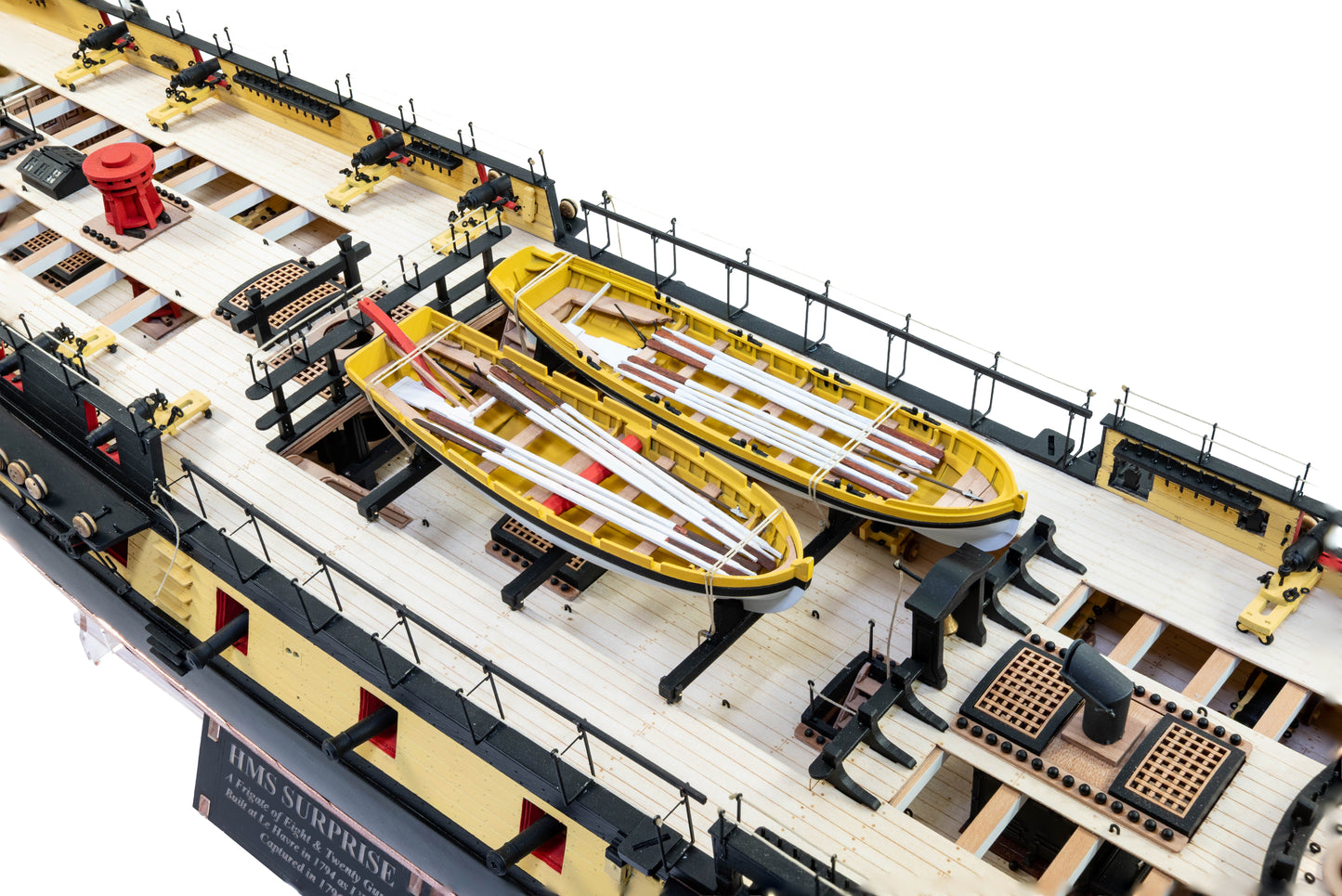

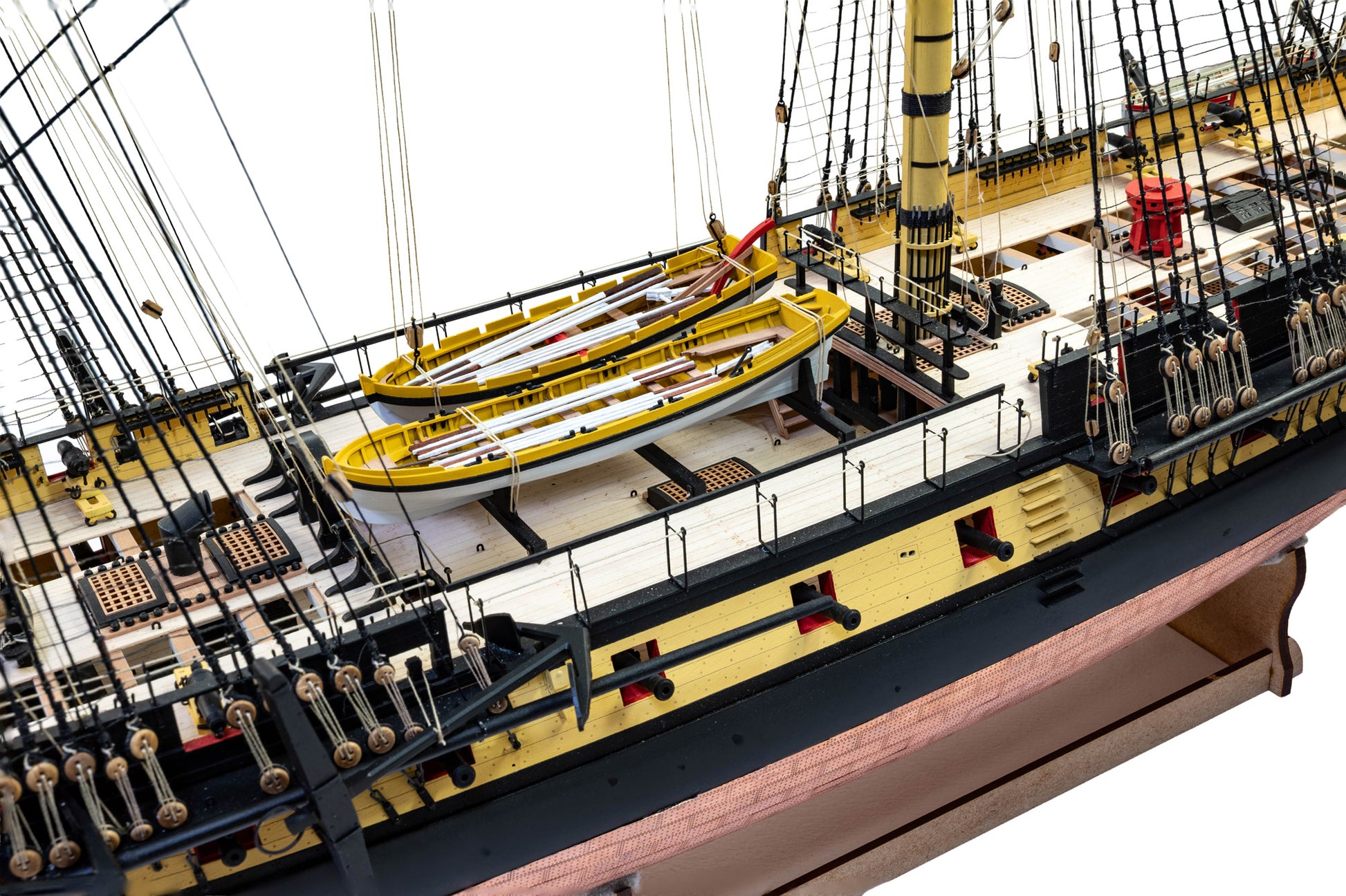

- Four scale ship’s boats included with 3D printed hulls
- Multiple photo-etched brass sheets with PE copper plates included as standard
- Fittings in wood, brass and 3D printed resin
- Full colour A4 instruction manual featuring nearly 1000 photographs and line drawings
- 27 A1 sized plan sheets

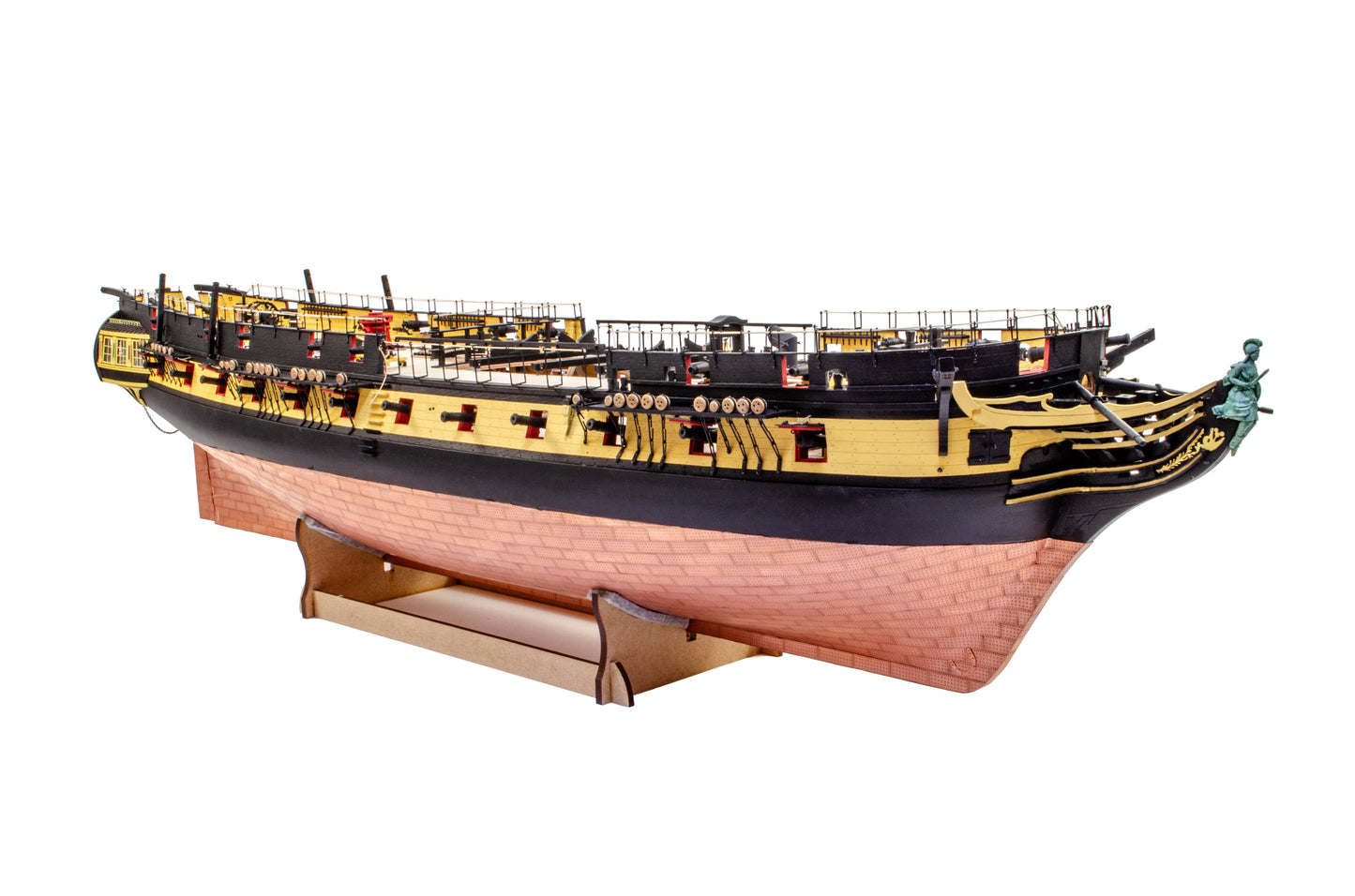

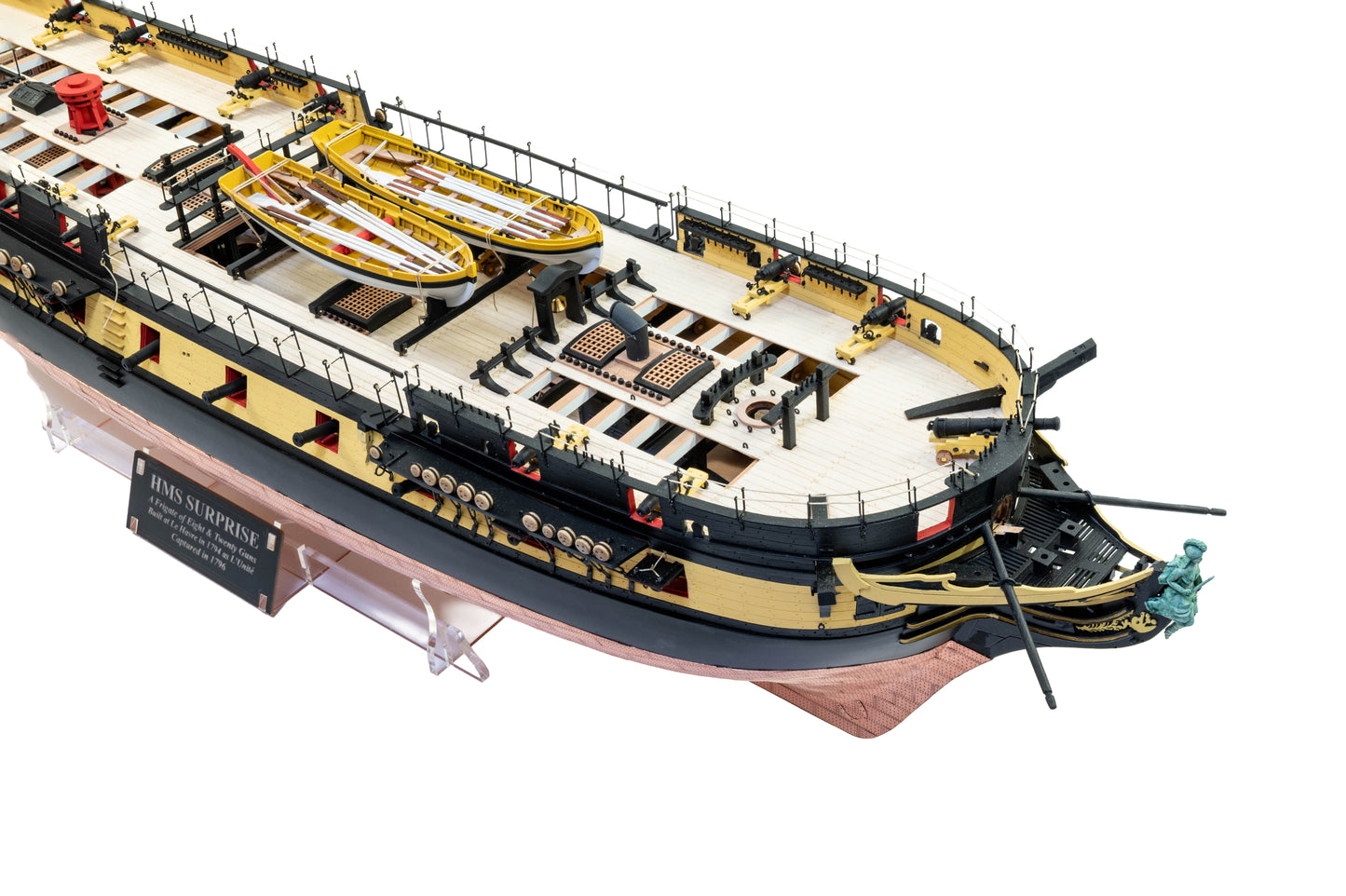

- Acetate display stand with engraved nameplate

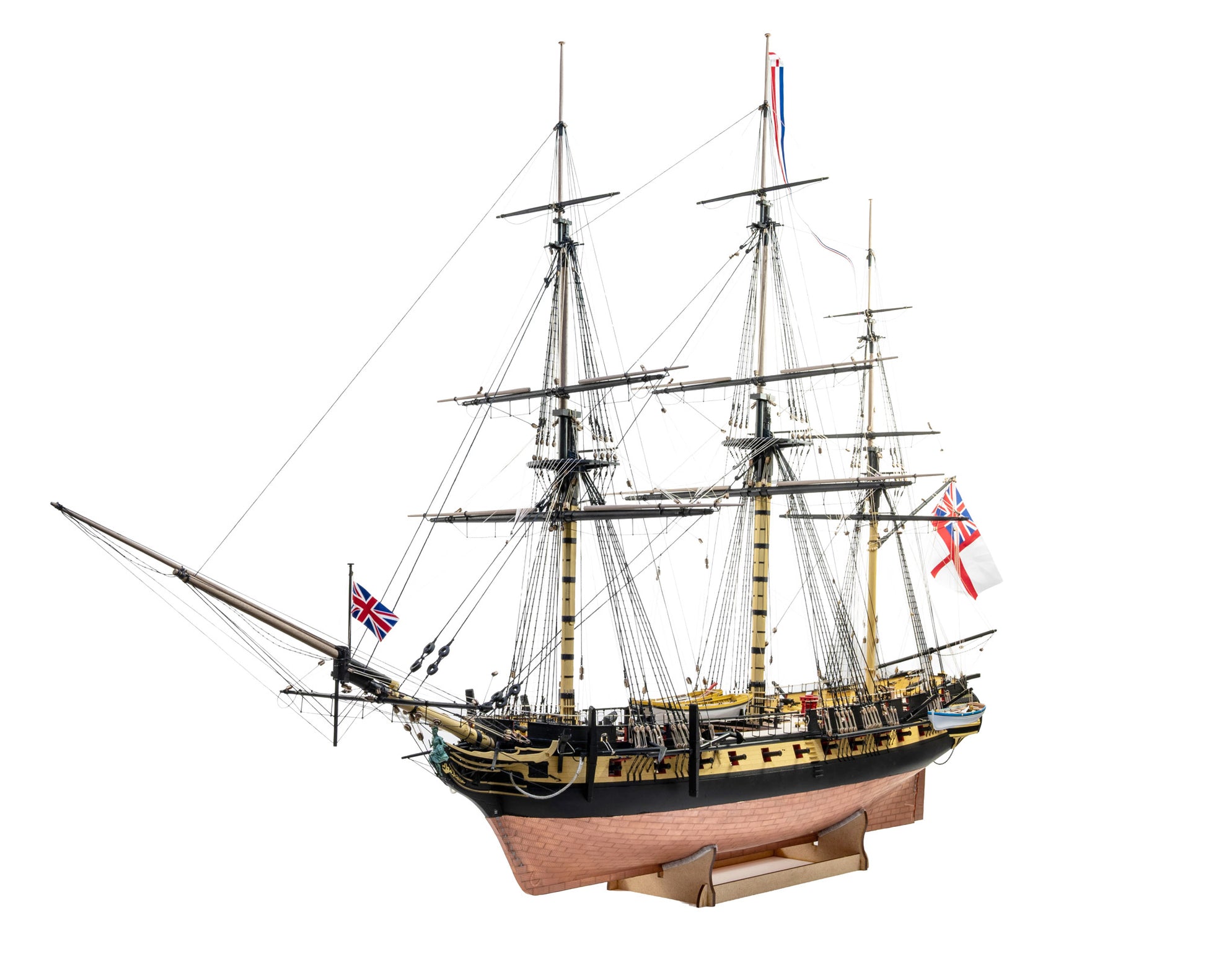

- Full rigging package including dowel, blocks, deadeyes and rigging thread

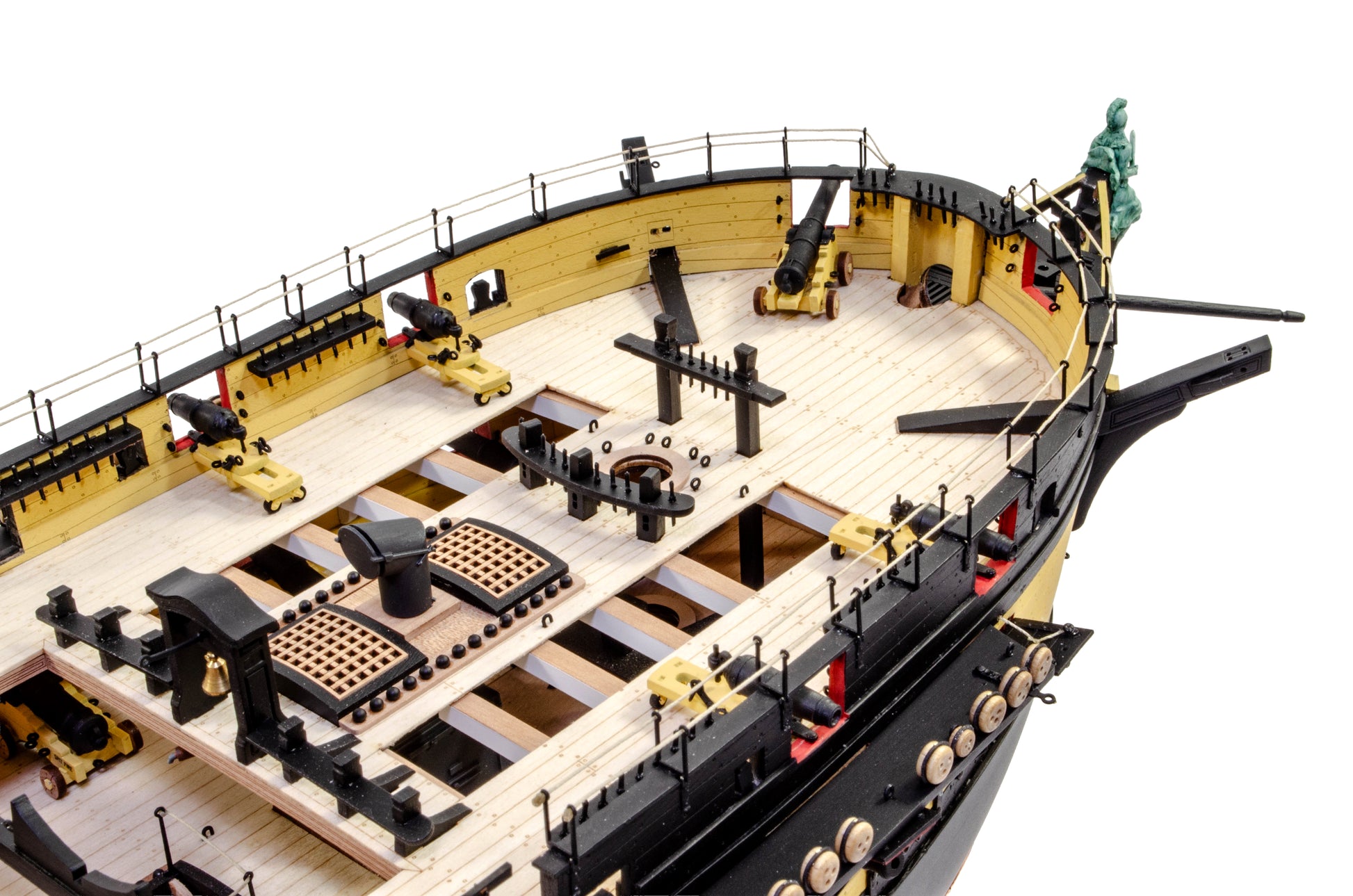

- Detailed captain’s cabin interior
- Aubrey and Maturin figures included
- Standard configuration includes 24 x 9-pounder long guns
- Optional original armament configuration with 32-pounder carronades
- Waterslide decal sheets including nameplates, depth markings and cannon carriage names

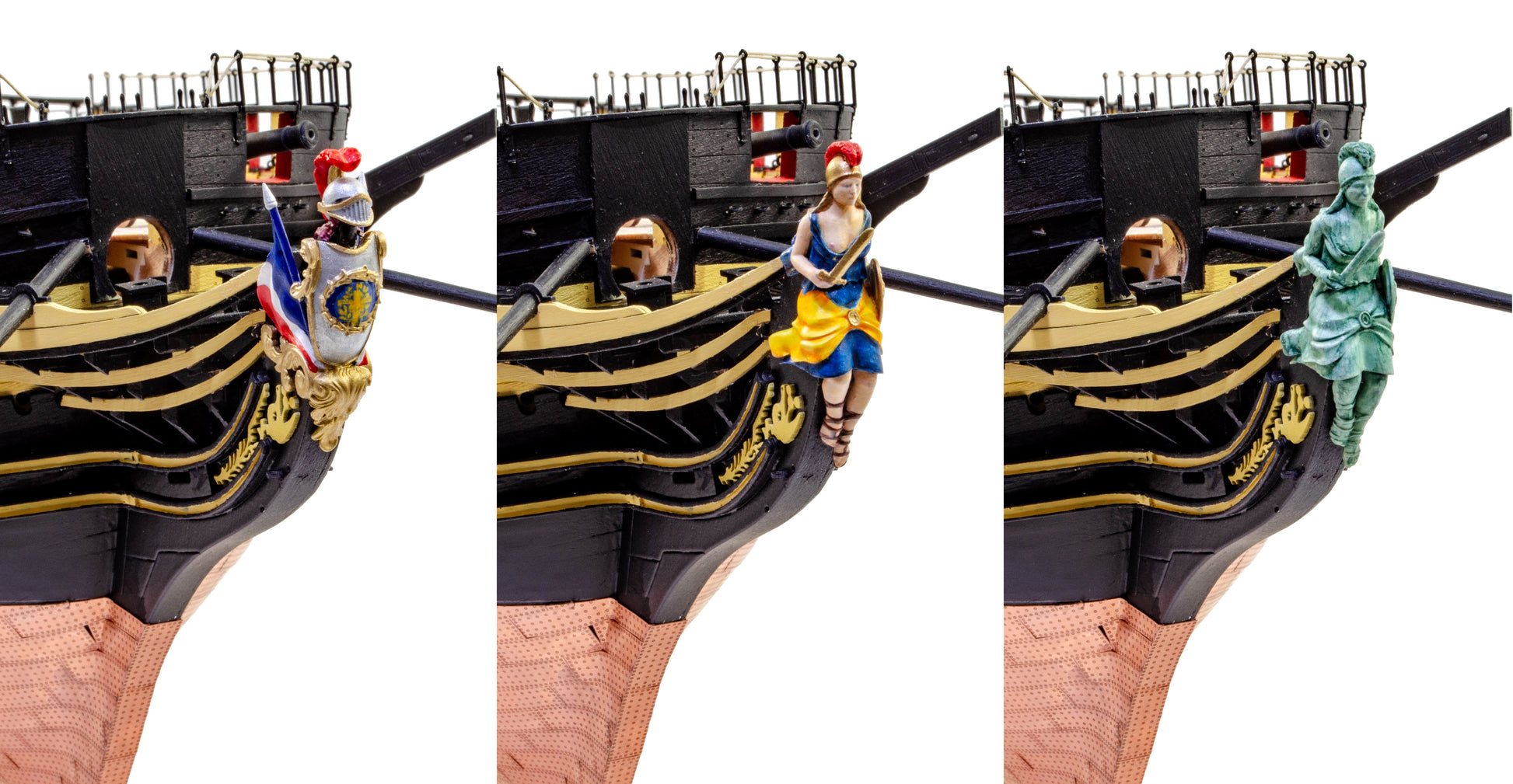

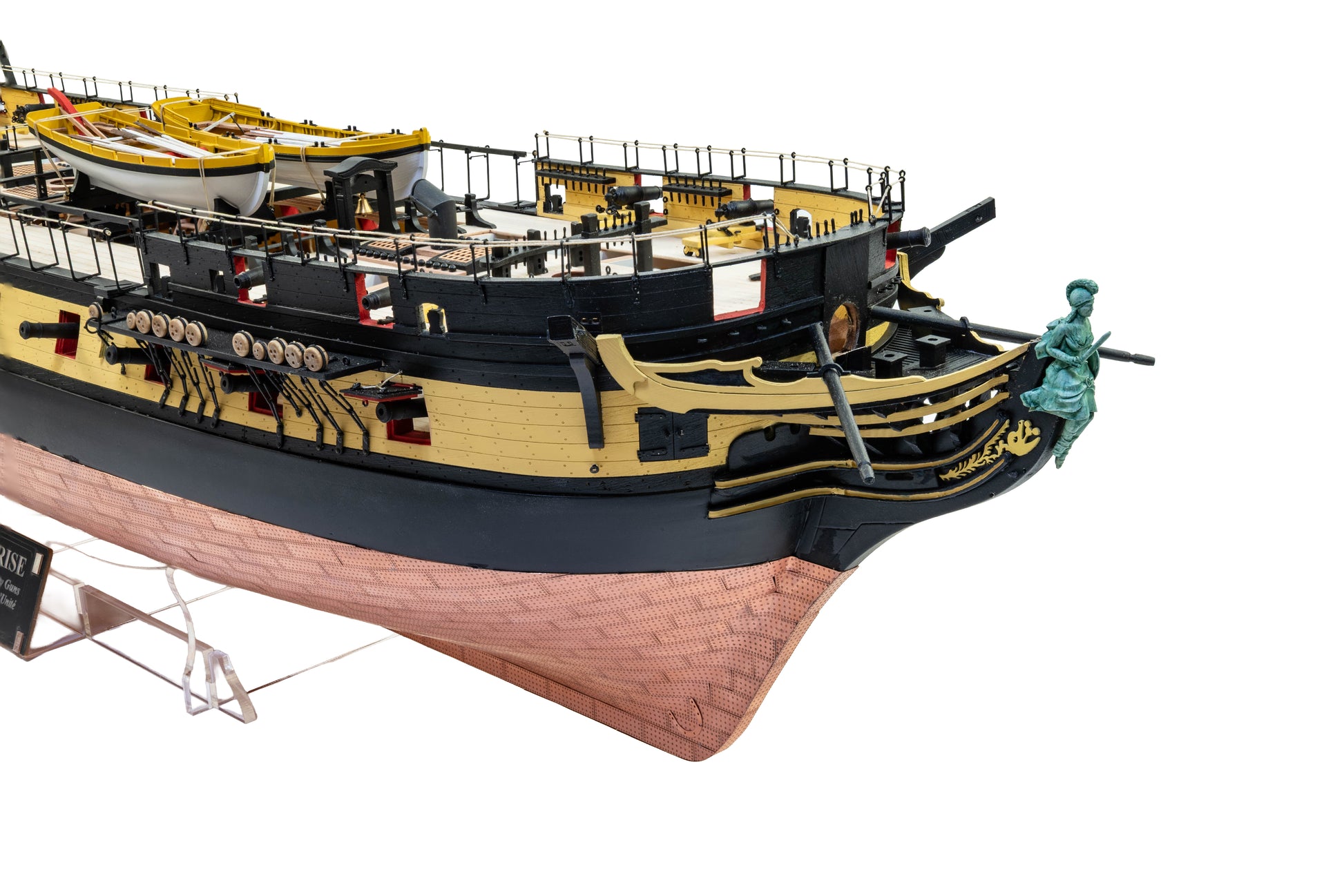

- Two figureheads included for fictional and historical versions

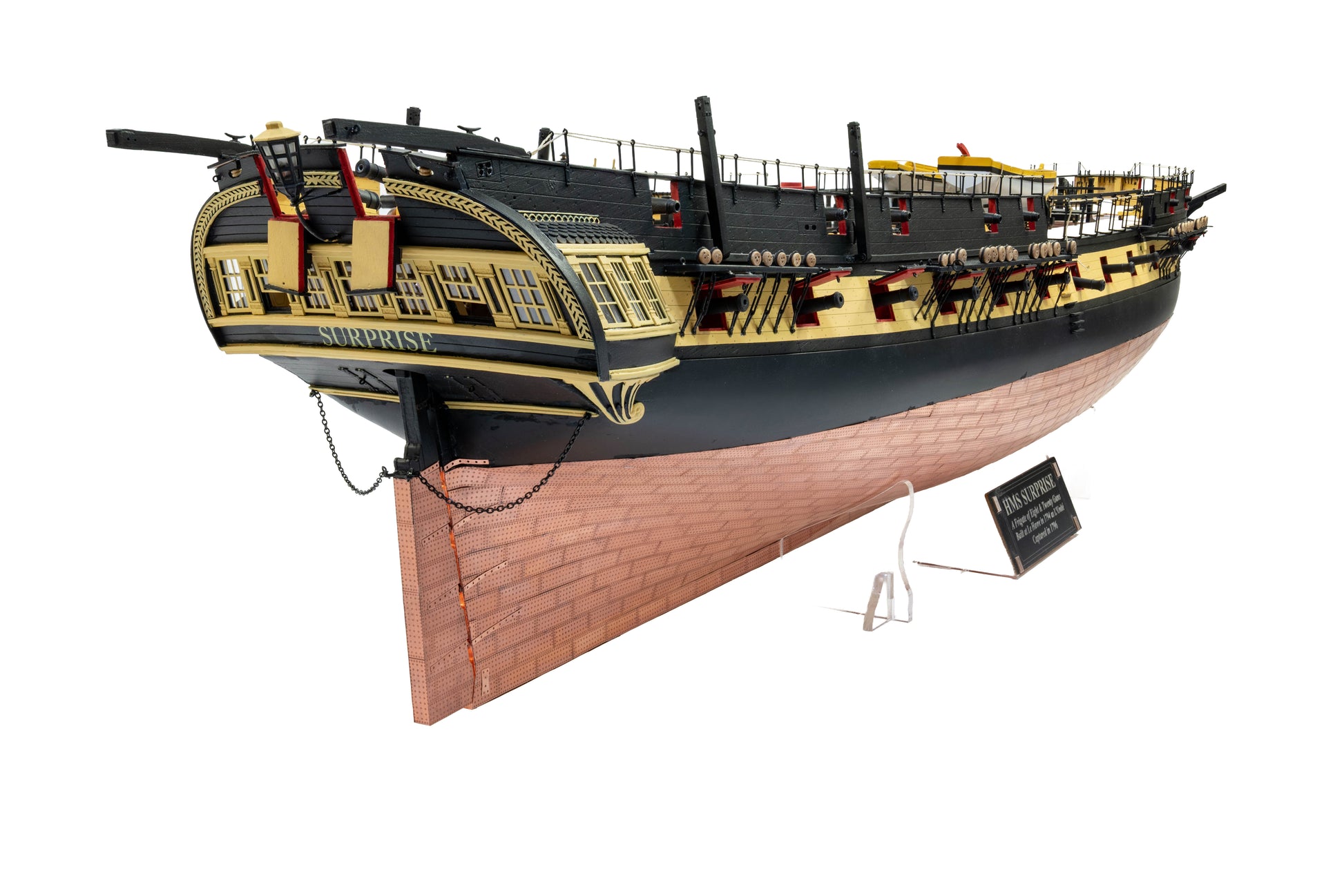

- Two stern configurations with photo-etched stern windows to represent both real and fictional variants
Skill Level – Advanced
HMS Surprise has been developed for experienced ship modellers and is designed to deliver the highest level of accuracy and detail possible within a commercial kit.
This is not recommended as a first ship model. The build is intended for modellers who have already completed multiple ship or boat projects and are confident with advanced construction and rigging techniques.
Every stage of the kit has been designed to be as logical, rewarding and immersive as possible, while still demanding patience, precision and a strong eye for detail.
HMS Surprise was the name the Royal Navy gave to the French Navy’s corvette Unité after its capture in 1796. Unité was launched on 16 January 1794. Surprise gained fame in 1799 for the recapture of HMS Hermione. In 1802 Surprise was sold out of the service.
Pierre-Alexandre Forfait designed Unité, the name ship for a class of corvette. Although the French initially rated Unité as a corvette, the ships of her class bridged a gap between smaller warships and frigates, and at various times were rated as frigates.
- Class & type - Unité-class corvette
- Displacement - 657 tons
- Length (Gundeck) 126 ft 0 in (38.4 m)
- Beam 31 ft 8 in (9.7 m)
- Complement - 172 (peace) & 220 (war)
- Armament
- As Unité:
- 24 × 8-pounder long guns
- 8 × 4-pounder long guns
As HMS Surprise:
- Gun deck: 24 × 32-Pounder carronades
- QD: 8 × 4-pounder guns + 4 × 12-pounder carronades
- Fc: 2 × 4-pounder chase guns + 2 × 12-pounder carronades
Fiction – (Main gun deck) - 24 x 9-pounder long guns
Fiction (Upper deck)– 14 x 18-pounder carronades + 2x6-pounder chase guns (40 guns in total)
HMS Surprise was the ship chosen by author Patrick O’Brian to restore Captain “Lucky” Jack Aubrey of the Aubrey–Maturin series to his place as a captain, and eventually see him raise his flag as an admiral of the Royal Navy. Surprise is an important element of the series, both because of her importance to the running plotline, and because of the emotional attachment she has earned among the characters in the book and real-life fans of the series.
In the late 1990s, publisher W. W. Norton & Company rented the replica of HMS Rose in New York for a pier-side party to celebrate the publication of Patrick O’Brian’s latest novel. O’Brian himself was present, and he casually mentioned to the frigate’s captain, Richard Bailey, that if the Rose were painted in an 1805 colour scheme, she would be a “dead ringer” for the frigate Surprise that appeared in his books. Bailey quickly ordered his crew to get out the paint and make the changes. O’Brian was so impressed that he changed his mind about his prohibition of having any of his books converted into film, and Norton immediately started looking for a Hollywood production company. For the 2003 film Master and Commander: The Far Side of the World, the role of Surprise was filled by the same replica of HMS Rose, which was purchased by the film studio and extensively modified at Baja Studios to resemble the original Surprise for the role.
The book HMS Surprise by O’Brian also mentions Aubrey being a midshipman aboard Surprise. The series has the Surprise in service until O’Brian’s extended fictional year of 1812, using the latitude of fiction in The Reverse of the Medal. In that era, the Royal Navy commissioned a 38-gun frigate by this name in September 1812.
The fictional Surprise is sold out of the service in The Reverse of the Medal, being purchased by Stephen Maturin and employed first as a letter of marque and later as His Majesty’s hired ship Surprise under Aubrey’s command. Maturin agrees to sell the Surprise to Aubrey in The Nutmeg of Consolation, though later novels suggest that never transpired and Maturin continued to own the ship. Surprise’s ultimate fictional fate is unknown although she was still at sea in 1817 when Aubrey receives news of his promotion to Rear-Admiral of the Blue in her great cabin at the end of Blue at the Mizzen, the last completed novel in the series.
The Surprise public house in Chelsea, London, established in 1853, is named after the ship with the pub sign containing an image of the ship.
Our kit version of Surprise has been developed to depict first and foremost the Surprise in Patrick O’Brian novels and not the film version. The film version is much smaller than the real (and fictional) Surprise, as this was based on a 20-gun Seaford Class ship from the 1750’s, with a gun deck length around 20 foot shorter than the real Surprise with less main deck gun port piercings and substantially fewer upper deck guns. (Although Surprise was classed as a 28-gun frigate, she actually carried up to 40 guns in total).
Scale - 1:64
- Length Overall - 1160mm
- Hull Length - 752mm
- Height Overall - 780mm
- Width Overall - 400mm
